PRIMARY SHREDDER VB 750 DK LV

DRIVE
engine 380 PS (280 kW) CAT C9.3 – Stage 5
max. torque 240.000 Nm
engine speed 1.900 rpm
fuel capacity                           470 I
DISCHARGE BELT
discharge height in mm 4.600 mm (33°)
belt width in mm 1.400 mm

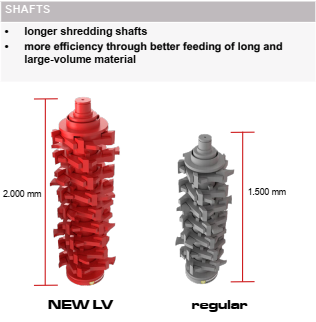

SHAFTS
length in mm 2.000 mm
shaft diameter 650 mm
HOPPER
hopper volume 8 m3
main & tilting hopper Tilting hopper with feeding surface for long materials
DIMENSIONS & WEIGHT
working dimension LxBxH 12 x 2.5 x 4.6
weight 22.5 t machine + 1 t magnet
MATERIAL
wood: waste wood, railway sleeper, cable drums, pallets
waste: domestic waste, bulky waste
