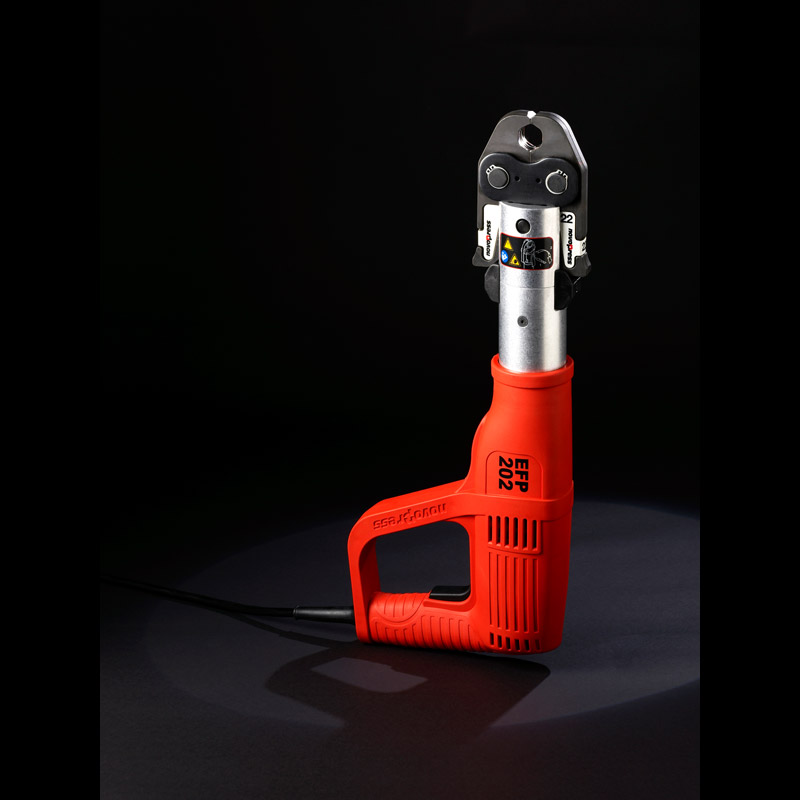

EFP202 / AFP202 - POWERFUL MULTITALENTS

Without the comfort features, but at the same top quality level and of the same reliability, are the Basic-Line pressing tools AFP202 (battery driven) and EFP202 (mains driven). In the style of the pressing tools EFP1 and EFP2, which are very successful in the market since 1978, we decided to go for the pistol style design. The robust tools provide a steady and reliable performance, even without the electronic controls and the microprocessor. By leaving these features out, the AFP202 and the EFP202 can be offered at a very fair price level.

The Basic-Line pressing tools EFP202 and AFP202 fulfil the standards of the compatibility and therefore have a piston stroke of 40 mm and a piston force of 32 kN.

ADVANTAGES

sturdy design
mechanical bolt retention
balanced tool weight

EFP202	AFP202
Dimensions metal pipe	up to 54 mm (depending on system up to 108mm)	up to 54 mm (depending on system up to 108mm)
Dimensions plastic pipe	up to 110 mm	up to 110 mm
Piston force	32 kN	32 kN
Piston stroke	40 mm	40 mm
Weight	4,1 kg	3,9 kg (battery incl.)
Length	446 mm	385 mm
Width	85 mm	85 mm
Height	220 mm	240 mm
Power consumption	450 W	450 W
Battery	--	14,4V NiCd 2,0 Ah 18V Li-Ion 3,0 Ah
Battery capacity 1)	--	50 / 110 pressing cycles
Charging time 2)	--	approx. 65 min. / 100 min

1) depending on dimension and material
2) depending on battery capacity
