SBC series (12-52kV - for PT)

SBC BUSHINGS
The newest CEDASPE bushing, designed with future requirements in mind.

KEY FEATURES

• Innovative design
• Maintenance-free guarantee
• Fully interchangeable with DIN/EN standard bushings and suitable for retrofitting old bushings
• PD-free
• Suitable for off-shore applications

Mainly used for insulating power transformers on the low-voltage side, SBC is the latest bushing released in the CEDASPE product range. Safe, efficient and reliable, this bushing type anticipates future market requirements.

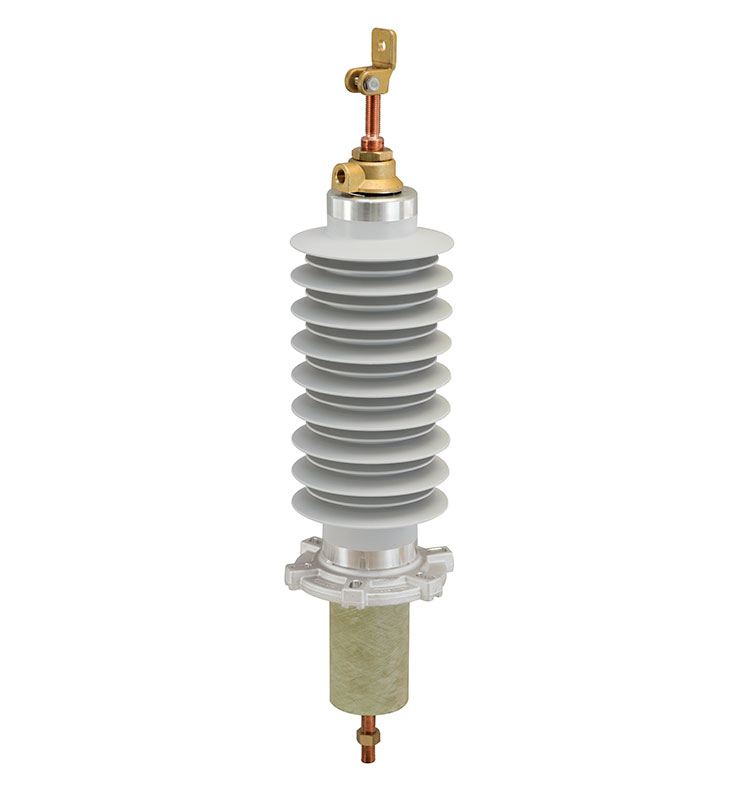

SBC series bushings are liquid filled (hollow core oil communicating) bushings designed in accordance with EN 50180. The insulating envelope is made of a fiberglass tube onto which a premium quality silicone is injected using a modern system based on liquid technology (LSR). Transformer oil fills the space between the rod and the fiberglass tube, increasing the electrical insulation and dissipating the thermal energy generated by the high current.
The SBC's innovative design guarantees perfect performance thanks to its flange that is directly integrated into the composite body, improving the strength of the bushing and reducing the risk of oil leakage.
Thanks to the excellent properties of the silicone insulating envelope (i.e. self-cleaning, hydrophobicity, UV radiation resistance, elasticity, etc.), this bushing is considered to be “maintenance free”. The low weight and elasticity of the silicone make the SBC bushing very easy to handle and mount, effectively reducing the risk of breakages and guaranteeing safe operations and a long service life.
The CEDASPE SBC bushing design has the same overall dimensions of the corresponding porcelain HV bushing type, either according to DIN 42533 & 4 or to EN 50180, allowing for replacement on-site during normal transformer maintenance operations. The shape of the silicone shed profile along with the use of premium quality silicone allows the CEDASPE SBC bushing to reach creepage distances up to 1690 mm and be considered partial discharge-free.
Featuring a wide range of available customizations, the SBC bushing can be manufactured according to almost any kind of customer requirement (i.e. rod extension, special connectors, special finish surface, etc.).
Designed for both indoor and outdoor applications, the SBC bushing series can even operate under extreme environmental conditions (i.e. very polluted areas, very cold/hot ambient temperatures, very corrosive/aggressive environments, etc.).
A new version of the SBC bushing suitable for off-shore applications was released in May 2017: the use of AISI 316 stainless steel completely avoids the risk of corrosion, reducing the maintenance related costs.

Rated voltage	Rated current	Antipollution level	Catalogue
From 12 kV up to 52 kV	From 1250 A up to 3150 A	c(P3) and d(P4)
From 12 kV up to 36 kV	4500 A	d(P4)
	630 A
52 kV	From 250 A up to 630 A	c(P3)
