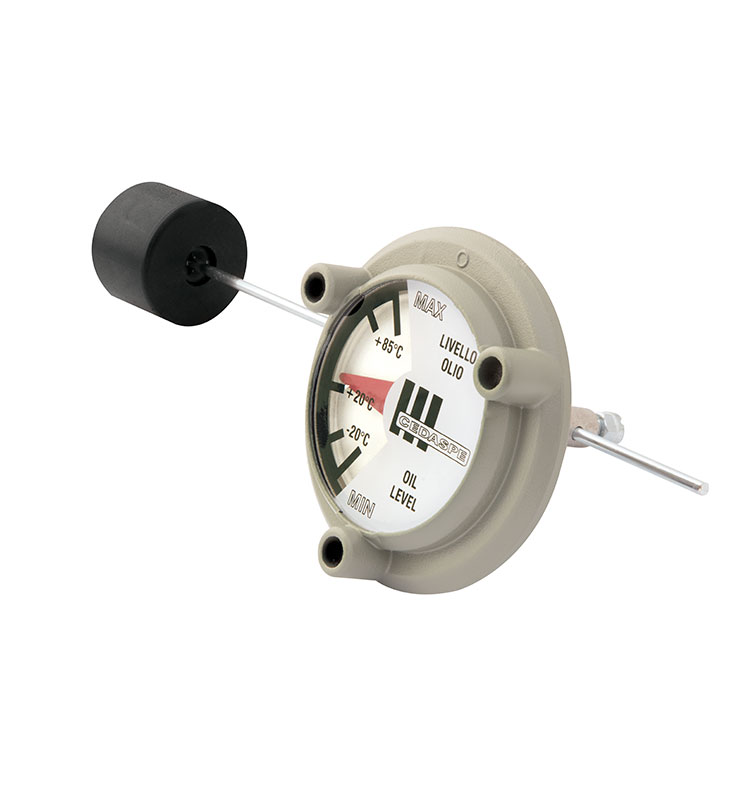

Magnetic oil gauges for distribution transformers
| TECHNICAL DATA | |
| Dial diameter | 65mm, 80mm and 100mm |
| Round flange execution | 3 holes and 4 holes |
| Body in aluminum alloy casting | |
| Standard references | EN 50216 |
| Waterproof (IP65 protection degree) | |
| Window material | Trogamid or tempered glass |
| Environmental conditions | from -60°C up to +70°C |
| Finishing for exreme/high corrosive environments | |
| Download | |
| Full catalogue |  |
PRODUCT DESCRIPTION
The IML series magnetic oil level gauge is used for checking and measuring the oil level in oil-immersed distribution transformers with a conservator diameter up to 400 mm.
These gauges have no contacts; rather, a float moves parallel to the dial ("R" design) on which an arrow indicates the oil level inside the conservator. The body is made of aluminum.
| IML model | Dial diameter | Flange holes no. | Catalogue |
| IML 80 | 80 mm | 3 | |
| IML 99 | 100 mm | 4 | |
| IMLO R100 | 65 mm | |
|
| Others | |||
| Wiring diagram (only for IMLO R100 model) | |
||
